HDPE Pipe Extrusion Line
1. Pipe size:16—1400mm
2. Extruder: 45mm—150mm
3.Capacity:180—1200Kg per hour
| Quantity: | |
|---|---|
PE Pipe SJ65
DIANMEI
8477800000
Water Supply HDPE Pipe Extrusion Line
Dianmei machinery offers hdpe pipe extrusion line. Based on years development of plastic extruding machinery, HDPE pipe extruder line is a stable running machine in making HDPE pipe. The pipe extruder line layout is reasonable, the performance is well, the output pipe is made by plc control system.
1. Temperature control of PE pipe extrusion is accurate
2. Optimized screw design achieve a better melting pe material
3. Hard face gearbox with big torsion ensures screw rotating stable
4. Extruder machine frame body undergoes integrated plane process so levelling is guaranteed.
5. Vacuum tank and cooling tank install with water levelling sensor and water filters
6. Caterpillar haul off unit numbers from 2—12 caterpillars

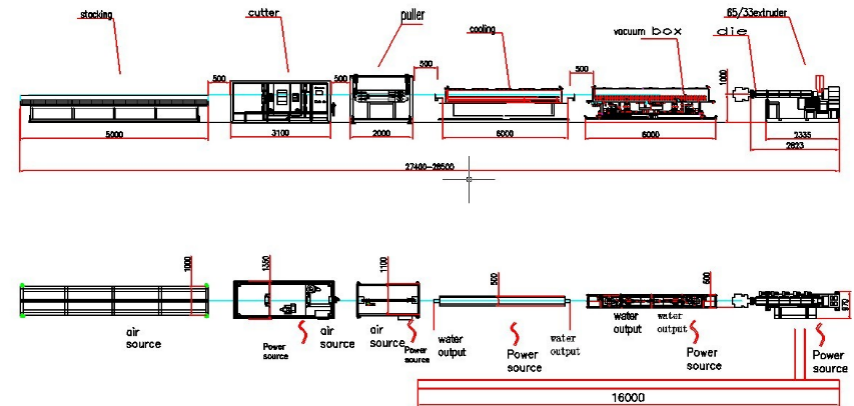

This PE pipe production line adopts high efficiency single screw extruder, equipped with extrusion mould, vacuum tank, spray cooling tank, haul off, planetary cuter and controller by PLC system
Model | Pipe Range(mm) | Hauling Speed(m/min) | Total Length(m) | Max Output capacity(kg/h) | Total Power(kw) |
PE32A | 16-32 | 2.5-30 | 40 | 180 | 90 |
PE32A-S | 2-16-32 | 2.2-22 | 40 | 280 | 140 |
PE63A | 16-63 | 2.0-25 | 42 | 260 | 110 |
PE110A | 20-110 | 1.5-15 | 45 | 350 | 135 |
PE160A | 50- 160 | 1.2-12 | 45 | 400 | 180 |
PE250A | 75- 250 | 0.45-4.5 | 48 | 450 | 215 |
PE315A | 90- 315 | 0.3-3 | 50 | 550 | 250 |
PE450A | 110- 450 | 0.2-2 | 60 | 650 | 320 |
PE630A | 250- 630 | 0.14-1.4 | 68 | 900 | 510 |
PE800A | 315- 800 | 0.12-1.2 | 76 | 1000 | 630 |
PE1000A | 450- 1000 | 0.1-1 | 78 | 1100 | 720 |
PE1200A | 710- 1200 | 0.08-0.8 | 80 | 1300 | 800 |
Service for PE Pipe Machine
We have sold our machine to Uzbekistan, Jamaica, Turkey, Egypt, Nigeria. we can provide turn key solution and BOT proposal to the customer.
Our package plan include machine supply, layout plan, site commissionning, and teach know-how, and accompany production, till customer operater by himself.
we welcome friends both home and abroad to carry out business talks with us.
